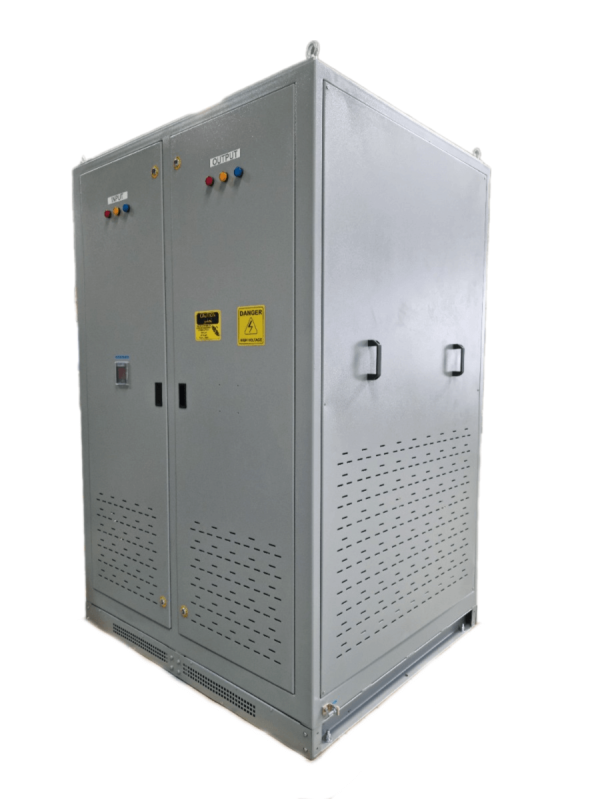

Three-Phase Isolation Transformers – All Solutions
Our three-phase isolation transformers are truly “All Solutions,” designed to meet every customer need. Even in challenging field conditions, where workers face daily obstacles, Magnetic Controls and Electrical’s…
-
High EfficiencyLower energy losses
-
Reliable PerformanceLong service life
-
IEC CertifiedMeets global standards
-
Free ShippingOn orders over £500
-
Secure Payment100% secure checkout
-
2 Year WarrantyManufacturer warranty
Product Overview
Our three-phase isolation transformers are truly “All Solutions,” designed to meet every customer need. Even in challenging field conditions, where workers face daily obstacles, Magnetic Controls and Electrical’s Department spoke with professionals who rely on transformers every day, and they confirmed that our key strength is versatility.
| Voltage Range | Low Voltage (≤ 1kV) |
|---|---|
| Cooling Type | Dry Type |
| Brand | Magnetic Control |
| Rating | 50 VA – 1500 kVA |
| Construction | Insulation Class F / H |
| Standards | IEC 60076 / IEC 61558 |
SPECIFICATIONS
- 50VA – 1500KVA
- Insulation Class F/H/220
- Thermic Class H/220
- Thermal Withstanding Capacity
- Class F – 155°C, Class H – 180/220°C
- Three Phase Type – Shell/Core
- Vector Group – Up-on Customer Request
- Primary Voltage – Up-on Customer Request
- Secondary Voltage – Up-on Customer Request
- Max. Ambient Temperature – 40 Deg C (Indoor) or
- Max. Ambient Temperature – 50/55 Deg C (Outdoor)
FEATURES
- High noise attenuation capacity
- Reduced coupling capacitance
- Lower leakage current
- Suitable for higher harmonic loads
- High thermal withstanding capacity
- Low losses
- High efficiency
- Rugged construction
- No core saturation at high voltage
- Applicable standards are IEC 60076, IEC 61558, NEMA ST 20, IEEE C57.12.01
- Operating Temperature: Ambient -0°C to 55°C
- Storage Temperature: Ambient -10°C to 55°C
- 60Hz operating Range: 57-63Hz
- Relative Operating Humidity: 90% non condensing
- Audible Noise – As per IEC, NEMA and SABIC Standards
- We manufacture both Copper and Aluminum Transformers based on customer request
- Core is Manufactured in very low loss or in oriented grain lamination
Technical Specifications
- Voltage Range
- Low Voltage (≤ 1kV)
- Cooling Type
- Dry Type
- Brand
- Magnetic Control
- Rating
- 50 VA – 1500 kVA
- Construction
- Insulation Class F / H
- Standards
- IEC 60076 / IEC 61558
-
