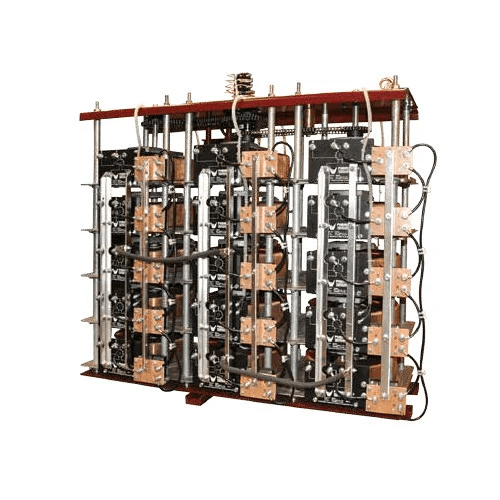

Variable Auto Transformers
As two winding transformers Magnetic and Controls is also engaged in manufacturing Variable autotransformer with torroidal core type . ’ Variac ‘ is the trademark name of Variable…
-
High EfficiencyLower energy losses
-
Reliable PerformanceLong service life
-
IEC CertifiedMeets global standards
Price on Request
-
Free ShippingOn orders over £500
-
Secure Payment100% secure checkout
-
2 Year WarrantyManufacturer warranty
Product Overview
- As two winding transformers Magnetic and Controls is also engaged in manufacturing Variable autotransformer with torroidal core type . ’ Variac ‘ is the trademark name of Variable auto transformer.
- Variac provides provides a voltage adjustable source of alternating current electricity . A Variable auto transformer is single coil wound transformer where two portions of the coil is used as primary and
- They are also different from regular auto transformer since they are equipped with automatic switchgear in order to automatically step up or down depending on preset condition . Magnetic and Controls Variac helps in maintaining a steady voltage in customers service during wide range of load condition . By exposing a part of winding coil and making the secondary connection through a sliding brush a continuously variable turns ratio can be obtained allowing very smooth control of voltage.
- We manufacture both single phase and three phase variac.
| Voltage Range | Low Voltage (≤ 1kV) |
|---|---|
| Cooling Type | Dry Type |
| Brand | Magnetic Control |
| Rating | Stepless output control |
| Construction | Good voltage regulation |
| Standards | No waveform distortion |
FEATURES OF SINGLE PHASE AND THREE PHASE VARIAC
- Very high efficiency
- Good voltage regulation
- No waveform distortion
- Reliable and compact design
- High short time surge capacity
- Continuous, step less and smooth control of output
Technical Specifications
- Voltage Range
- Low Voltage (≤ 1kV)
- Cooling Type
- Dry Type
- Brand
- Magnetic Control
- Rating
- Stepless output control
- Construction
- Good voltage regulation
- Standards
- No waveform distortion
-
